Access control for vector stores using metadata filtering with Knowledge Bases for Amazon Bedrock

In November 2023, we announced Knowledge Bases for Amazon Bedrock as generally available.

Knowledge bases allow Amazon Bedrock users to unlock the full potential of Retrieval Augmented Generation (RAG) by seamlessly integrating their company data into the language model’s generation process. This feature allows organizations to harness the power of large language models (LLMs) while making sure that the generated responses are tailored to their specific domain knowledge, regulations, and business requirements. By incorporating their unique data sources, such as internal documentation, product catalogs, or transcribed media, organizations can enhance the relevance, accuracy, and contextual awareness of the language model’s outputs.

Knowledge bases effectively bridge the gap between the broad knowledge encapsulated within foundation models and the specialized, domain-specific information that businesses possess, enabling a truly customized and valuable generative artificial intelligence (AI) experience.

With metadata filtering now available in Knowledge Bases for Amazon Bedrock, you can define and use metadata fields to filter the source data used for retrieving relevant context during RAG. For example, if your data contains documents from different products, departments, or time periods, you can use metadata filtering to limit retrieval to only the most relevant subset of data for a given query or conversation. This helps improve the relevance and quality of retrieved context while reducing potential hallucinations or noise from irrelevant data. Metadata filtering gives you more control over the RAG process for better results tailored to your specific use case needs.

In this post, we discuss how to implement metadata filtering within Knowledge Bases for Amazon Bedrock by implementing access control and ensuring data privacy and security in RAG applications.

Access control with metadata filters

Metadata filtering in knowledge bases enables access control for your data. By defining metadata fields based on attributes such as user roles, departments, or data sensitivity levels, you can ensure that the retrieval only fetches and uses information that a particular user or application is authorized to access. This helps maintain data privacy and security, preventing sensitive or restricted information from being inadvertently surfaced or used in generated responses. With this access control capability, you can safely use retrieval across different user groups or scenarios while complying with company specific data governance policies and regulations.

During retrieval of contextually relevant chunks, metadata filters add an additional layer of selection to those vectors that are returned to the LLM for response generation. In addition, metadata filtering requires fewer computation resources, thereby improving the overall performance and reducing costs associated with the search.

Let’s explore some practical applications of metadata filtering in Knowledge Bases for Amazon Bedrock. Here are a few examples and use cases across different domains:

A company uses a chatbot to help HR personnel navigate employee files. There is sensitive information present in the documents and only certain employees should be able to have access and converse with them. With metadata filters on access IDs, a user can only chat with documents that have metadata associated with their access ID. The access ID associated with their authentication when the chat is initiated can be passed as a filter.
A business-to-business (B2B) platform is developed for companies to allow their end-users to access all their uploaded documents, search over them conversationally, and complete various tasks using those documents. To ensure that end-users can only chat with their data, metadata filters on user access tokens—such as those obtained through an authentication service—can enable secure access to their information. This provides customers with peace of mind while maintaining compliance with various data security standards.
A work organization application has a conversational search feature. Documents, kanbans, meeting recording transcripts, and other assets can be searched more intently and with more granular control. The app uses a single sign-on (SSO) functionality that allows them to access company-wide resources and other services and follows a company’s data level access protocol. With metadata filters on work groups and a privilege level (for example Limited, Standard, or Admin) derived from their SSO authentication, you can enforce data security while personalizing the chat experience to streamline a user’s work and collaboration with others.

Access control with metadata filtering in the healthcare domain

To demonstrate the access-control capabilities enabled by metadata filtering in knowledge bases, let’s consider a use case where a healthcare provider has a knowledge base that contains transcripts of conversations between doctors and patients. In this scenario, it is crucial that each doctor can only access transcripts from their own patient interactions during the search, and not have access to transcripts from other doctors’ patient interactions.

By defining a metadata field for patient_id and associating each transcript with the corresponding patient’s identifier, the healthcare provider can implement access control within their search application. When a doctor initiates a conversation, the knowledge base can filter the vector store to retrieve context only from transcripts where the patient_id metadata matches either a specific patient ID or the list of patient IDs associated with the authenticated doctor. This way, the generated responses will be augmented solely with information from that doctor’s past patient interactions, maintaining patient privacy and confidentiality.

This access control approach can be extended to other relevant metadata fields, such as year or department, further refining the subset of data accessible to each user or application. By using metadata filtering in knowledge bases, the healthcare provider can achieve compliance with data governance policies and regulations while enabling doctors to have personalized, contextually relevant conversations tailored to their specific patient histories and needs.

Solution overview

Let’s walk through the high-level steps to implement access control with Knowledge Bases for Amazon Bedrock. The following GitHub repository provides a guided notebook that you can follow to deploy this example in your own account.

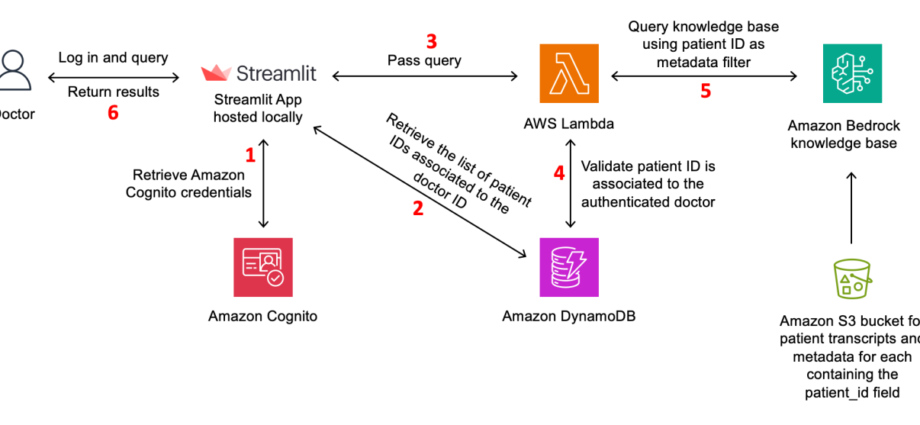

The following diagram illustrates the solution architecture.

Figure 1: Solution architecture

The workflow for the solution is as follows:

The doctor interacts with the Streamlit frontend, which serves as the application interface. Amazon Cognito handles user authentication and access control, ensuring only authorized doctors can access the application. For production use, it is recommended to use a more robust frontend framework such as AWS Amplify, which provides a comprehensive set of tools and services for building scalable and secure web applications.
After the doctor has successfully signed in, the application retrieves the list of patients associated with the doctor’s ID from the Amazon DynamoDB database. The doctor is then presented with this list of patients, from which they can select one or more patients to filter their search.
When the doctor interacts with the Streamlit frontend, it sends a request to an AWS Lambda function, which acts as the application backend. The request includes the doctor’s ID, a list of patient IDs to filter by, and the text query.
Before querying the knowledge base, the Lambda function retrieves data from the DynamoDB database, which stores doctor-patient associations. This step validates that the doctor is authorized to access the requested patient or list of patient’s information.
If the validation is successful, the Lambda function queries the knowledge base using the provided patient or list of patient’s IDs. The knowledge base is pre-populated with transcript and metadata files stored in Amazon Simple Storage Service (Amazon S3).
The knowledge base returns the relevant results, which are then sent back to the Streamlit application and displayed to the doctor.

User authentication with Amazon Cognito

To implement the access control solution for the healthcare provider use case, you can use Amazon Cognito user pools to manage the authentication and user identities of the doctors.

To start, you will create an Amazon Cognito user pool that will store the doctor user accounts. During the user pool setup, you define the necessary attributes for each doctor, including their name and a unique identifier (sub or custom attribute). For patients, their identifier will be used as the patient_id metadata field. This unique identifier will be associated with each patient’s account and used for metadata filtering in the knowledge base retrieval process.

Figure 2: User information

Doctor and patient association in DynamoDB

To facilitate the access control mechanism based on the doctor-patient relationship, the healthcare provider can create a DynamoDB table to store these associations. This table will act as a centralized repository, allowing efficient retrieval of the patient IDs associated with each authenticated doctor during the knowledge base search process. When a doctor authenticates through Amazon Cognito, their unique identifier can be used to query the doctor_patient_list_associations table and retrieve the list of patient_id values associated with that doctor.

Figure 3: Items retrieved based on the doctor_ID and patient relationships

This approach offers flexibility in managing doctor-patient associations. If a doctor changes over time, only the corresponding entries in the DynamoDB table need to be updated. This update does not require modifying the metadata files of the transcripts themselves.

Now that you have your doctor and patients set up with their relationships defined, let’s examine the dataset format required for effective metadata filtering.

Dataset format

When working with Knowledge Bases for Amazon Bedrock, the dataset format plays a crucial role in providing seamless integration and effective metadata filtering. This example uses a series of PDF files containing transcripts of doctor-patient conversations.

These files need to be uploaded to an S3 bucket for processing. To use metadata filtering, you need to create a separate metadata JSON file for each transcript file. The metadata file should share the same name as the corresponding PDF file (including the extension). For instance, if the transcript file is named transcript_001.pdf, the metadata file should be named transcript_001.pdf.metadata.json. This nomenclature is crucial for the knowledge base to identify the metadata for specific files during the ingestion process.

The metadata JSON file will contain key-value pairs representing the relevant metadata fields associated with the transcript. In the healthcare provider use case, the most important metadata field is patient_id, which will be used to implement access control. You assign each transcript to a specific patient by including their unique identifier from the Amazon Cognito user pool in the patient_id field of the metadata file, as in the following example:

{"metadataAttributes": {"patient_id": 669}}

By structuring the dataset with transcript PDF files accompanied by their corresponding metadata JSON files, you can effectively use the metadata filtering capabilities of Knowledge Bases for Amazon Bedrock. This approach enables you to implement access control, so each doctor can only retrieve and use content from their own patient transcripts during the retrieval process. For customers processing thousands of files, automating the generation of the metadata files using Lambda functions or a similar solution could be a more efficient approach to scale.

Knowledge base creation

With the dataset properly structured and organized, you can now create the knowledge base in Amazon Bedrock. The process is straightforward, thanks to the user-friendly interface and step-by-step guidance provided by the AWS Management Console. See Knowledge Bases now delivers fully managed RAG experience in Amazon Bedrock for instructions to create a new knowledge base, upload your dataset, and configure the necessary settings to achieve optimal performance. Alternatively, you can create a knowledge base using the AWS SDK, API, or AWS CloudFormation template, which provides programmatic and automated ways to set up and manage your knowledge bases.

Figure 4: Using the console to create a knowledge base

After you create the knowledge base and sync it with your dataset, you can immediately experience the power of metadata filtering.

In the test pane, navigate to the settings section and locate the filters option. Here, you can define specific filter conditions by specifying the patient_id field along with the unique IDs or list of identifiers of the patients you wish to test. By applying this filter, the retrieval process will fetch and incorporate only the relevant context from transcripts associated with the specified patient or patients. This filter-based retrieval approach means that the generated responses are tailored to the doctor’s individual patient interactions, maintaining data privacy and confidentiality.

Figure 5:Knowledge Bases console test configuration Panel

Figure 6: Knowledge Bases console test panel

Querying the knowledge base programmatically

You have seen how to implement access control with metadata filtering through the console, but what if you want to integrate knowledge bases directly into your applications? AWS provides SDKs that allow you to programmatically interact with Amazon Bedrock features, including knowledge bases.

The following code snippet demonstrates how to call the retrieve_and_generate API using the Boto3 library in Python. It includes metadata filtering capabilities within the vectorSearchConfiguration, where you can now add filter conditions. For this specific use case, you first need to retrieve the list of patient_ids associated with a doctor from the DynamoDB table. This allows you to filter the search results based on the authenticated user’s identity.

import boto3
import json

bedrock_agent = boto3.client('bedrock-agent-runtime')

# Retrieve and generate API

response = bedrock_agent.retrieve_and_generate(
    input={
        "text": "Who is Kelly?"
    },
    retrieveAndGenerateConfiguration={
        "type": "KNOWLEDGE_BASE",
        "knowledgeBaseConfiguration": {
             'knowledgeBaseId': <>,
            "modelArn": "arn:aws:bedrock:us-west-2::foundation-model/anthropic.claude-v2:1",
            "retrievalConfiguration": {
                "vectorSearchConfiguration": {
                    "numberOfResults":5,
                    "filter": {
                        "in": {
                            "key": "patient_id",
                            "value": <> # Amazon Cognito Id once the doctor is authenticated.
                        }
                    }
                }
            }
        }
    }
)

print(response['output']['text'],end='\n'*2)

You can create a Lambda function that serves as the backend for the application. This Lambda function uses the Boto3 library to interact with Amazon Bedrock, specifically to retrieve relevant information from the knowledge base using the retrieve_and_generate API.

Now that the architectural components are in place, you can create a visual interface to display the results.

Streamlit sample app

To showcase the interaction between doctors and the knowledge base, we developed a user-friendly web application using Streamlit, a popular open source Python library for building interactive data apps. Streamlit provides a simple and intuitive way to create custom interfaces that can seamlessly integrate with the various AWS services involved in this solution.

The Streamlit application acts as the frontend for doctors to initiate conversations and interact with the knowledge base. It uses Amazon Cognito for user authentication, so only authorized doctors can access the application and the corresponding patient data. Upon successful authentication, the application interacts with Lambda to handle the RAG workflow using the Amazon Cognito user ID.

Figure 7: Demo

Clean up

It’s important to clean up and delete the resources created during this solution deployment to avoid unnecessary costs. In the provided GitHub repository, you’ll find a section at the end of the notebook dedicated to deleting all the resources created as part of this solution to ensure that you don’t incur any ongoing charges for resources that are no longer needed.

Conclusion

This post has demonstrated the powerful capabilities of metadata filtering within Knowledge Bases for Amazon Bedrock by implementing access control and ensuring data privacy and security in RAG applications. By using metadata fields, organizations can precisely control the subset of data accessible to different users or applications during the RAG process while also improving the relevancy and performance of the search.

Get started with Knowledge Bases for Amazon Bedrock, and let us know your thoughts in the comments section.
